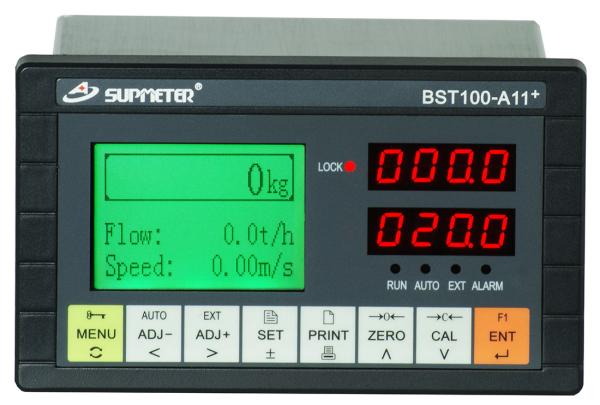

LCD Checkweigher Indicator Controller / Belt Scale Controller Auto Locking

LCD Belt/Loss-in-weight Weighfeeder controller, with weight totalizing and ration flow feeding

Main Features:

• Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
• EMC design with high anti-jamming capability, suitable for industrial environment.
• 32-bit ARM CPU with 72MHz & higher arithmetic speed.
• 128×64 LCD display screen with 7 background colors for English display.
• 4+4 Red LED digital tubes for digit display [Model Panel-mounting].
• 6-key English keypad.
• Menu&Shortcut mode operation with key tone.
• High-precision ∑-△A/D conversion technology and broad-range speed pulse input circuit.
• Max. Connection Quantity: 8 Loadcells (350Ω).
• Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
• Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
• 1 Optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
• Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
• Quick and steady PID ration feeding control.
• 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
• The feeder and belt weigher can be started and stopped by DI&DO signal.
• 1 ‘Totalized Weight High-speed Pulse’ output [PO].
• 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
• Weight Records per shift/day/month of a year can be queried and printed.
• With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
